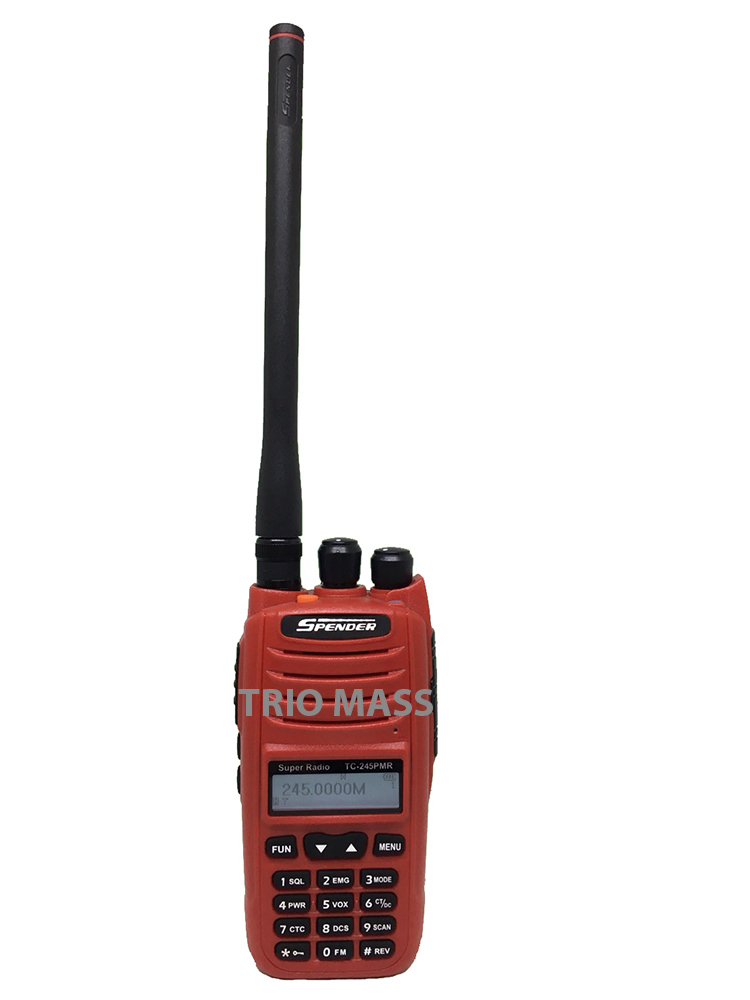

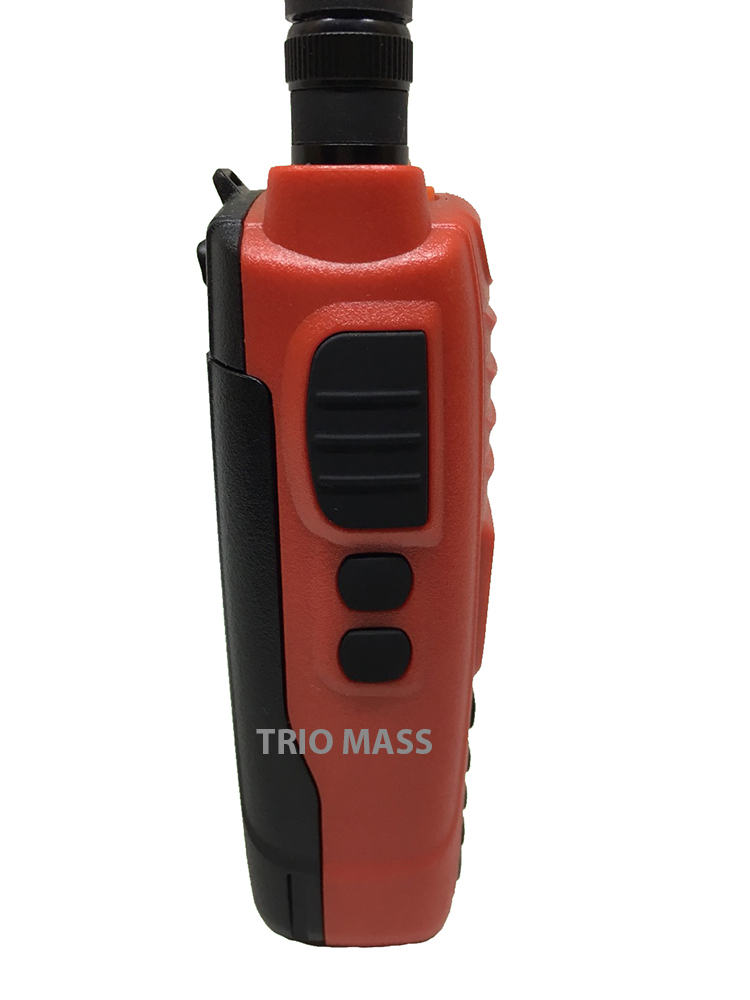

วิทยุสื่อสาร SPENDER TC-245PMR Plus
20 ตุลาคม 2565
ผู้ชม 5963 ผู้ชม
Features
- ANTI JAM CODE
- MILITALY STANDARD (USA) MIL-STD 810 CLASS : C/D/E/F AND G
- INGRESS PROTECTION RATING (IP54)
- SUPER HIGH POWER
- FM RADIO 87.5- 108.0 MHz.

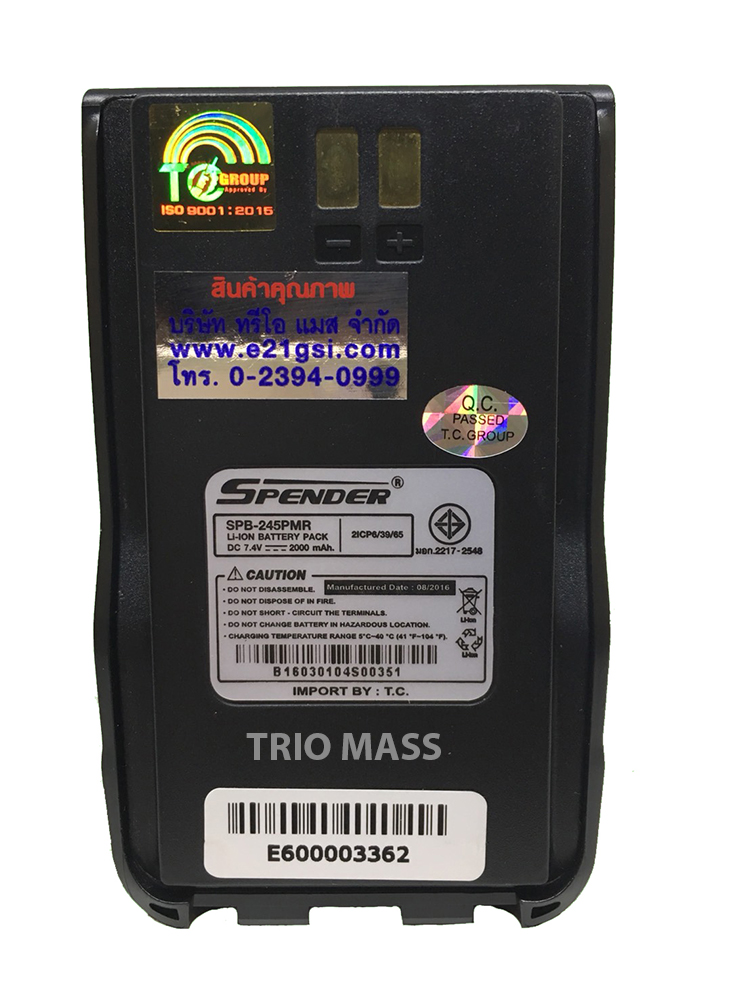

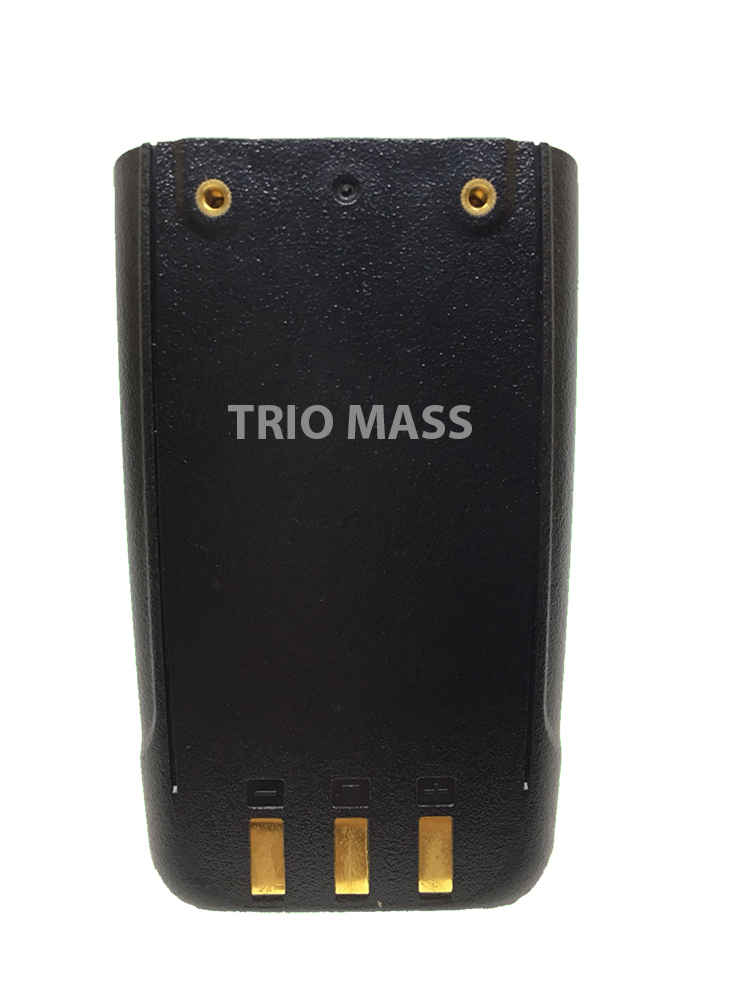

- BATTERY Li-ION 2,000 mAh.
- 80 CHANNELS , 119 FREE MEMORIES
- DCS 1024 CODE/ 52 CODE OF CTCSS
- VOX SENSITIVITY (VOX)
- SET UP NAME REPLACE CHANNEL
- MENU/ SHORTCUT-KET OPERATION
- MEMORY DISPLAY MODE
- OPEN CODE OPERATING
- DUPLEX FUNCTION
- EMERGENCY CALL
- TIME-OUT TIMER
- ETC.
Specification
|
GENERAL |
|
|
Frequency Cover Range |
245.0000 – 246.9875 MHz. |
|
Analog |
200 Channels |
|
Anti Code |
: 200 Channel – Fix Code : 20 Channels – Free Code |
|
Channel Spacing |
12.5KHz. |
|
Operation Voltage |
7.4V DC ± 20% |
|
Frequency Stability |
± 2.5 ppm |
|
Battery Life |
More than 22 Hours (2000mAh) |
|
Operation Temperature |
-20 °C ~ + 55°C |
|
Dimensions |
128 x 61 x 40 mm (with Battery) |
|
Weight |
257g (with Battery) |
|
TRANSMITTER |
|
|
Power Output |
Hi : 5w. / Lo : 1w. |
|
Modulation |
16K ∅F3E |
|
Adjacent Channel Power |
≥- 70dB. |
|
Hum & Noise |
≥-40dB. |
|
Spurious Emission |
≤-36dB. |
|
Audio Distortion |
≤5% |
|
RECEIVER |
|
|
Sensitivity (12dB SINAD) |
<0.2µV |
|
Digital Sensitivity |
0.3 µV/-117.4 dBm (BER 5%) 0.7µV/110 dBm (BER 1%) |
|
Adjacent Channel Selecivity |
0.7µV/-110dBm (BER1%) |
|
Intermodulation |
≥60dB. |
|
Spurious Rejection |
≥-70dB. |
|
Hum & Noise |
≥45dB. |
|
Audio Distortion |
≤5% |
